PARADOX

Keypad Module

Thumb_650x650_TM50-PristineWhite_Front

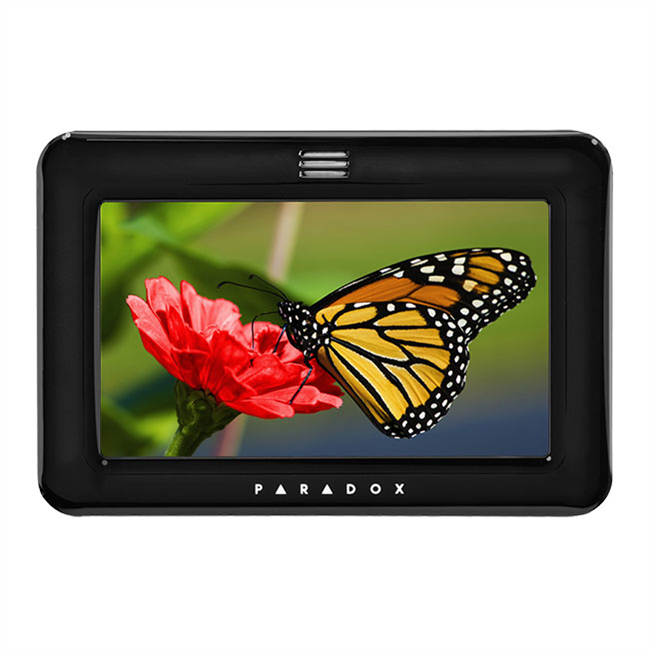

Thumb_650x650_TM50-PianoBlack_Front

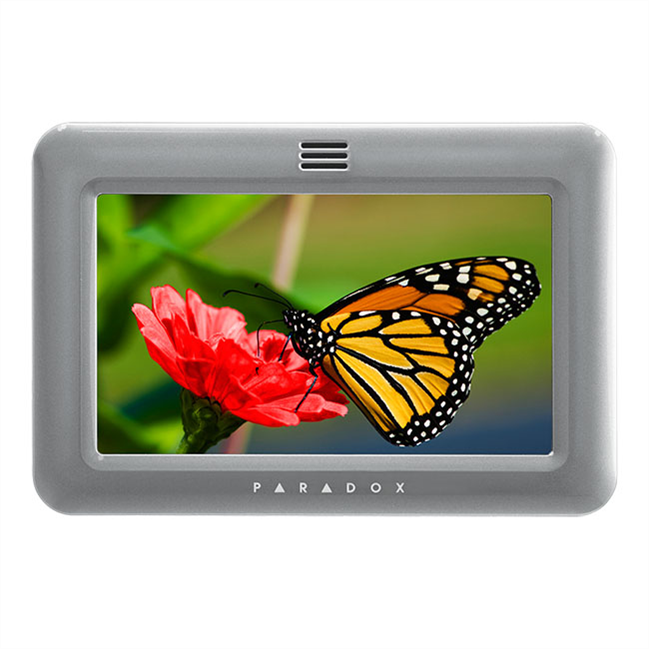

Thumb_650x650_TM50-SleekSilver_Front

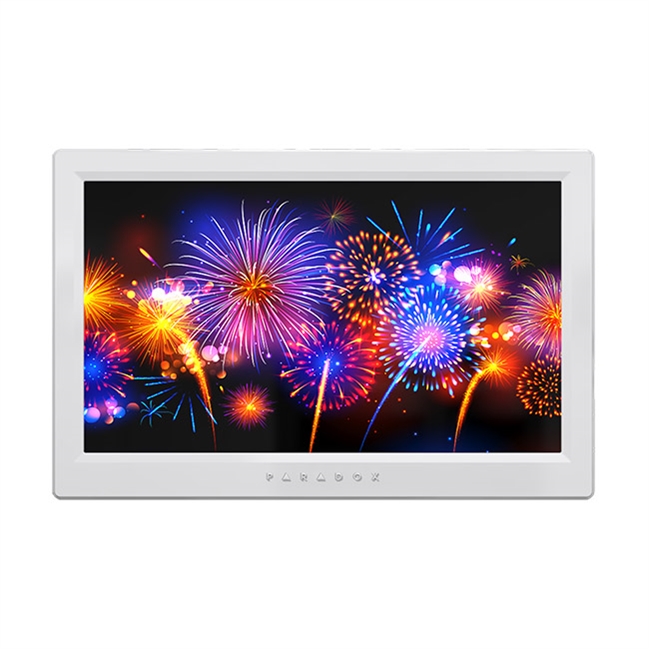

Thumb_650x650_TM70_Front_big

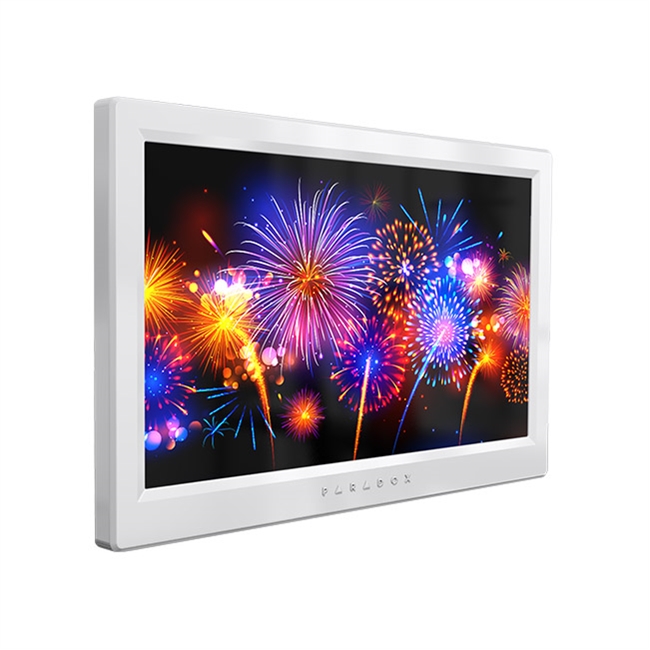

Thumb_650x650_TM70_45degrees_big

Thumb_650x650_TM70_Right_Side_Big

TM50/TM70 Touch Intuitive Touchscreen

Features

Thin, sleek design
- 5.0 in. / 7 in. vivid colour display
- Intuitive, icon-based menus – no manual needed
Control up to 8 PGM outputs
In-field firmware upgradable via micro SD card
Powerful advanced processor
1 zone/temperature input to connect a detection device or a TEMP07 (External Temperature Sensor)
Customized translation via web application
Surface-mount installation only; dimensions 14.4 x 9.6 x 1.4 cm (5.7 x 3.8 x 0.6 in.)
Available in classic Piano Black and Pristine White, as well as other exciting designer colors

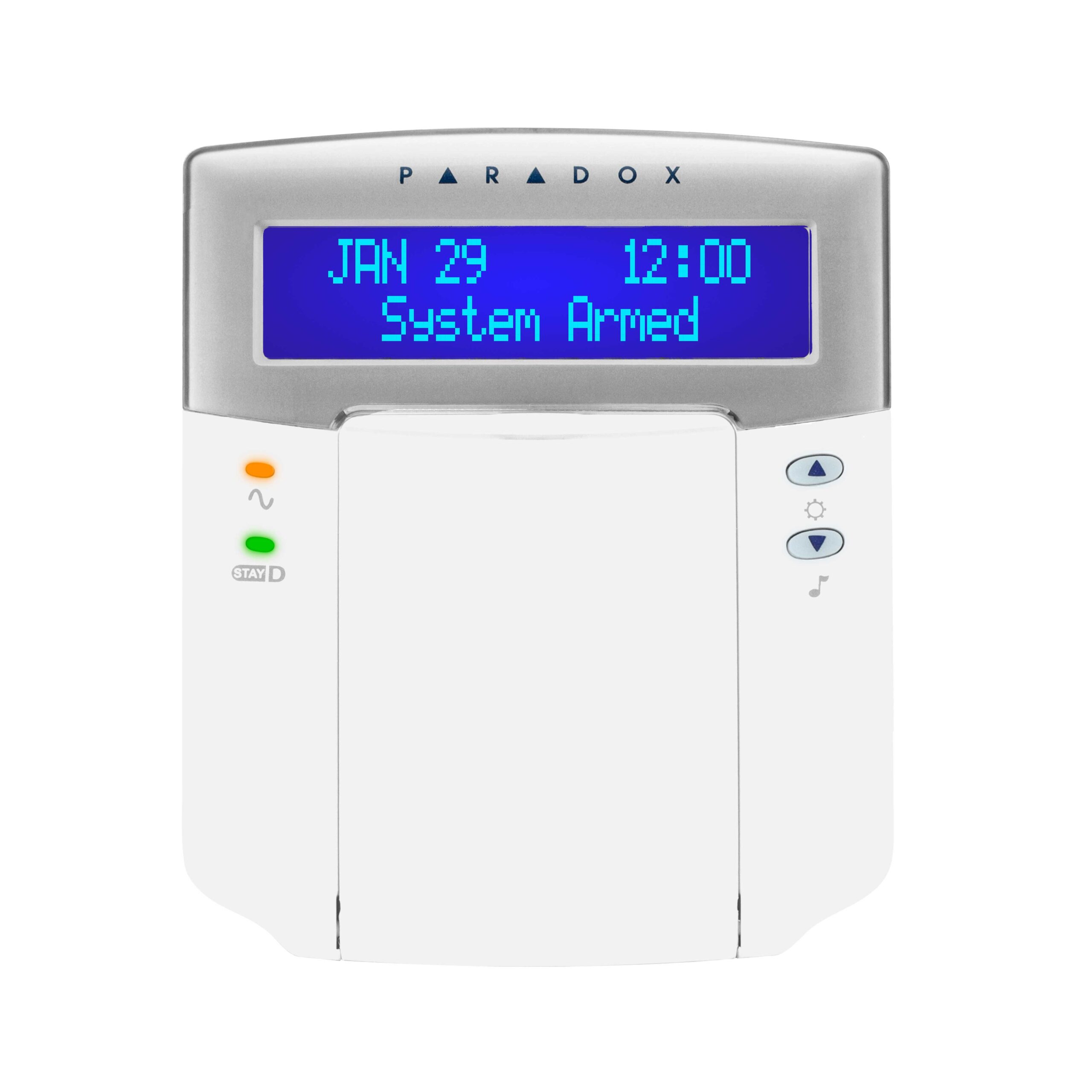

Thumb_650x650_K32LCD+_DC_Front_english_4k

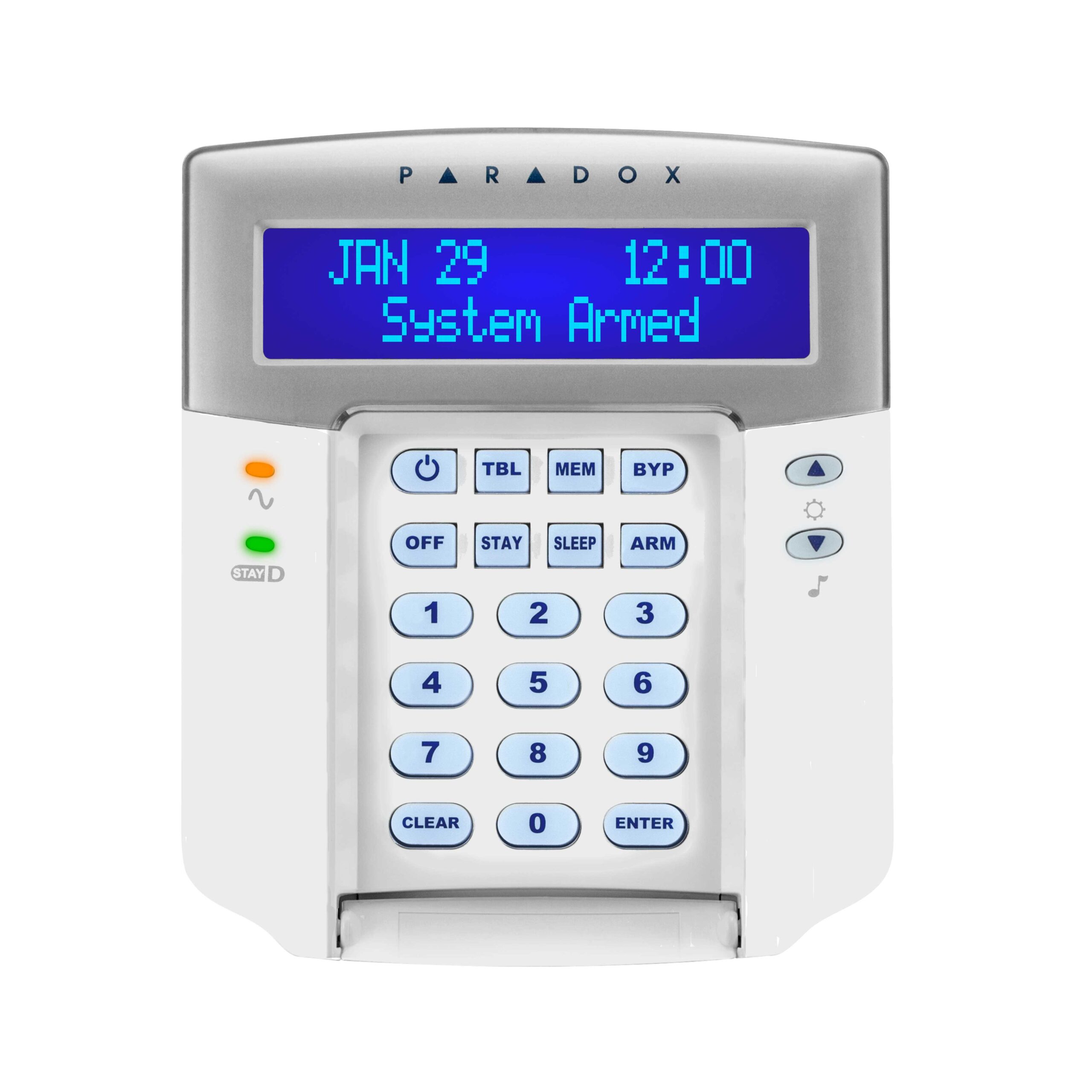

Thumb_650x650_K32LCD+_DO_Front_english_4k

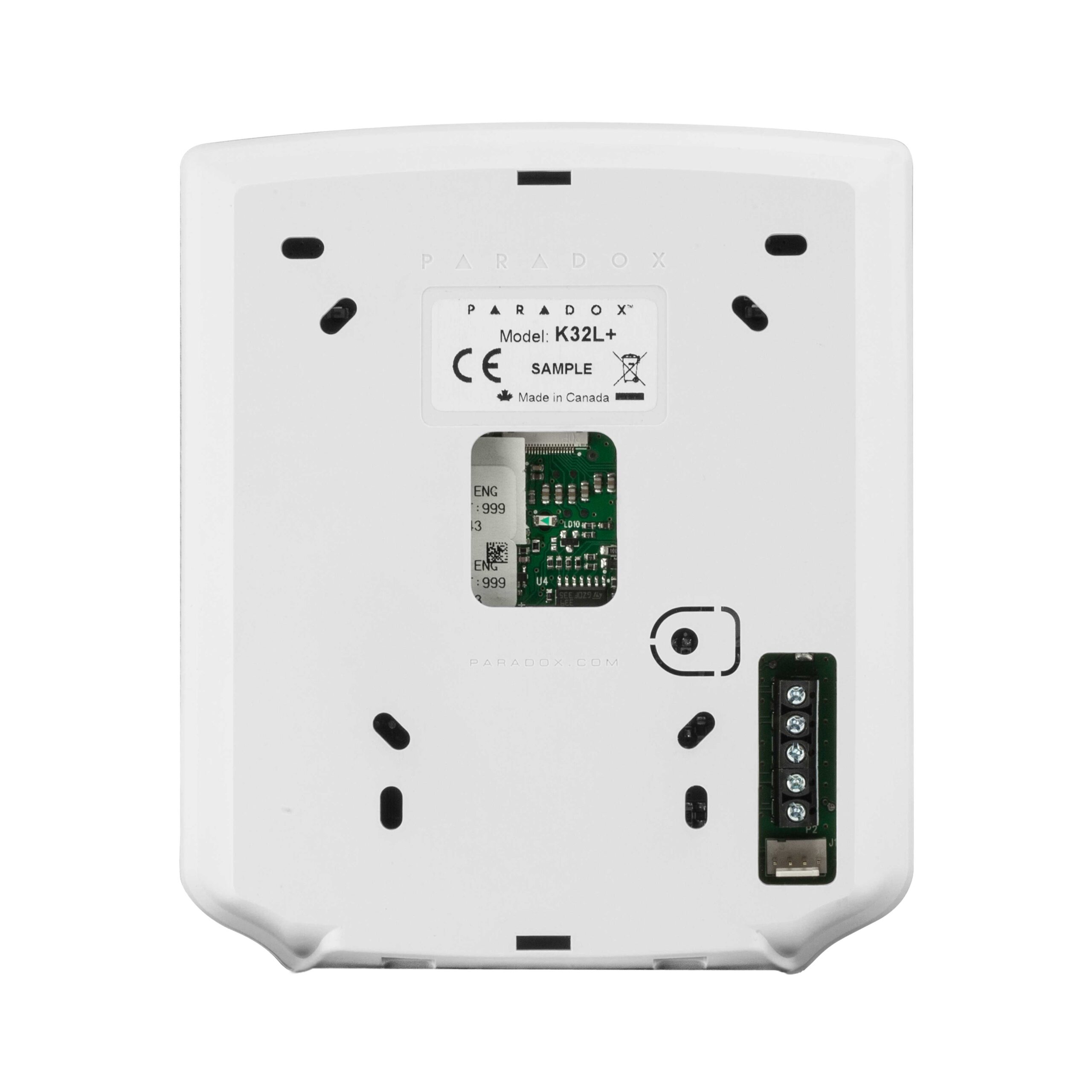

Thumb_650x650_K32LCD+_Back_4k

K32LCD 32-Character Hardwired LCD Keypad Module

Features

Beautiful new design
32-character blue LCD with programmable labels
Real-time zone alarm display (until disarmed)
In-field firmware upgrade via 307USB
StayD status LED
Menu-driven programming for easy system setup (installer and end-user)
1 keypad zone input
Independently set chime zones
8 one-touch action buttons
3 keypad-activated panic alarms
Adjustable backlight, contrast and scroll speed
Connects to 4-wire expansion bus
Compatible with MG5000, MG5050, MG5075, and Spectra SP series V2.31 and up
Compatible with SP4000, SP65 V4.90 and up

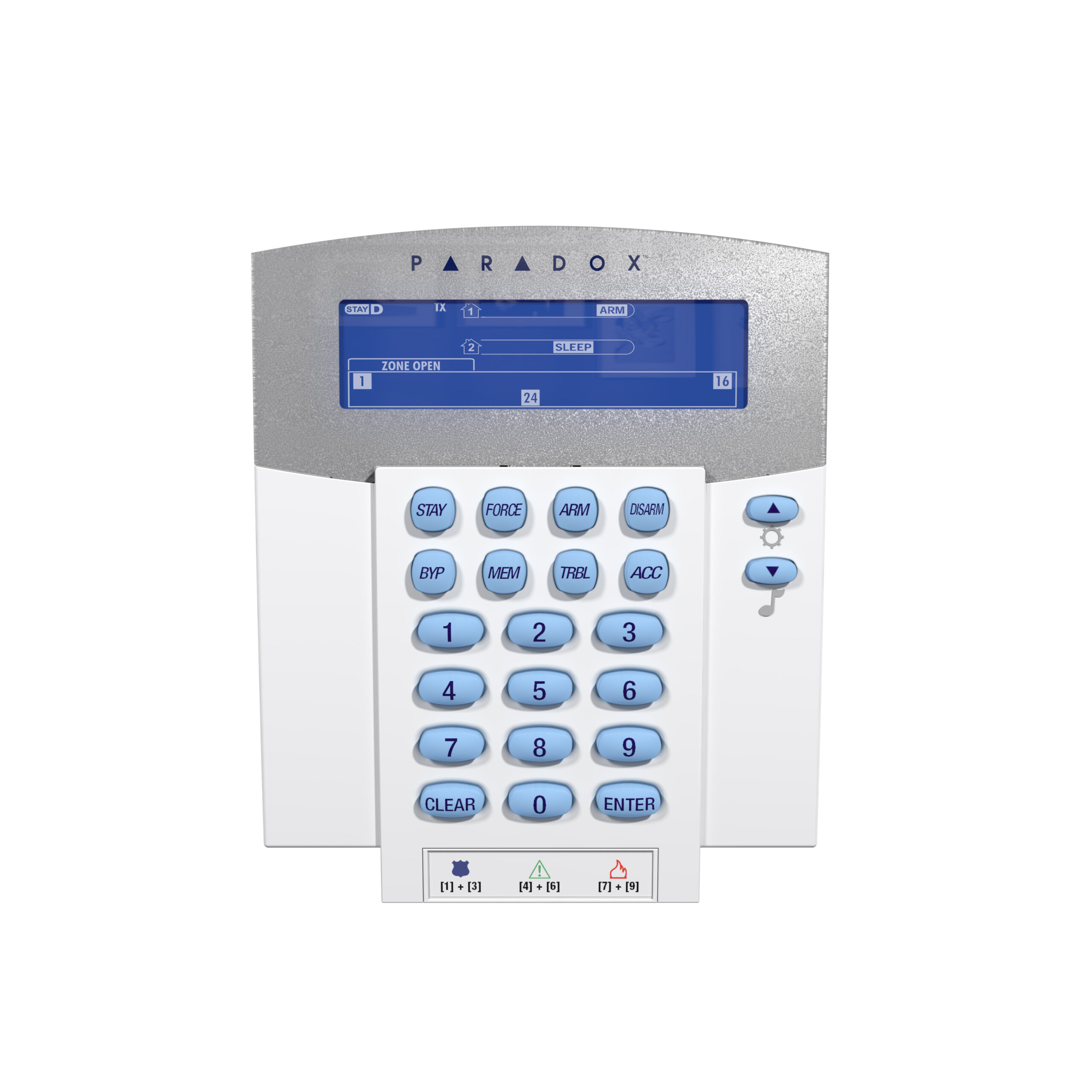

Thumb_650x650_K37_FrontOpened

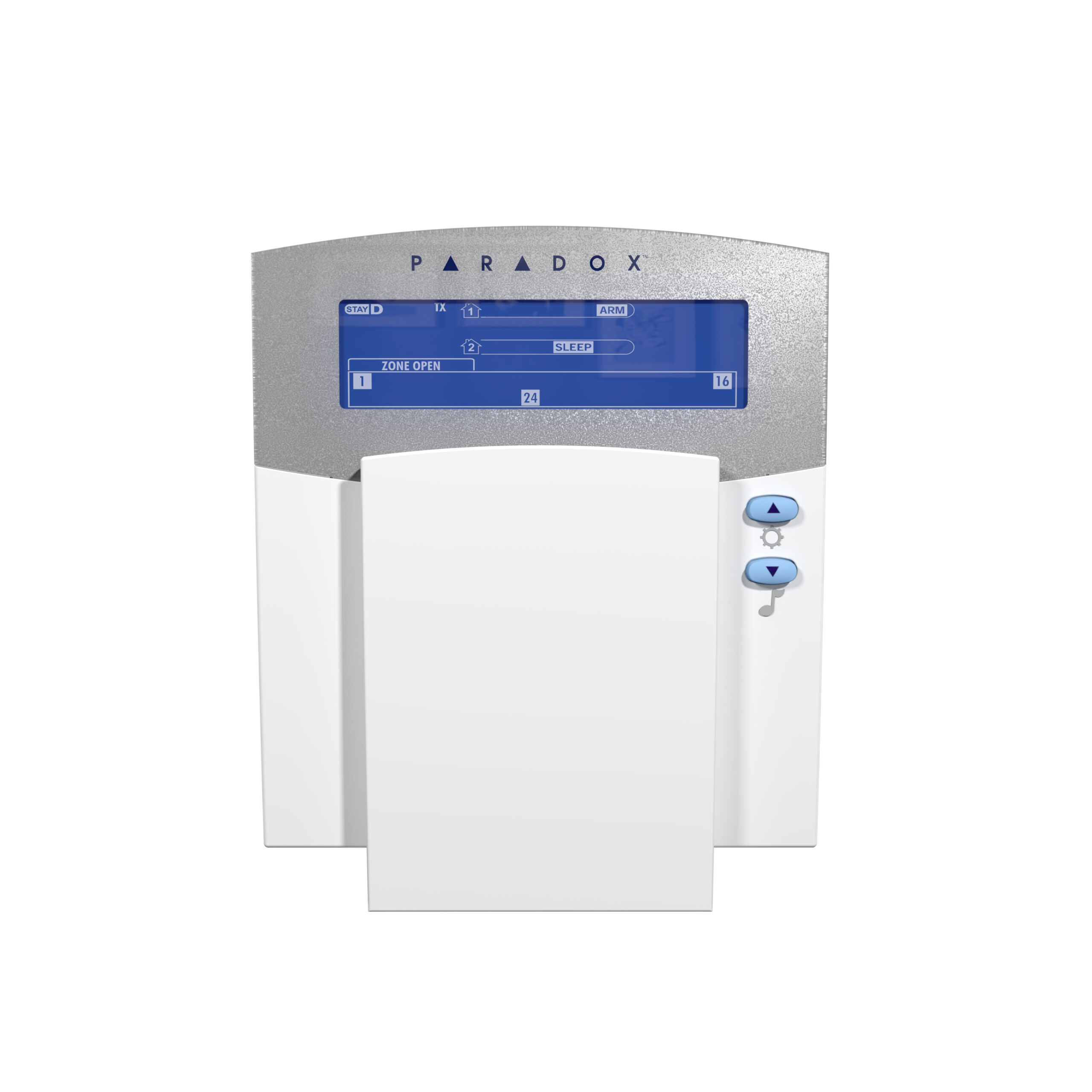

Thumb_650x650_K37_Front

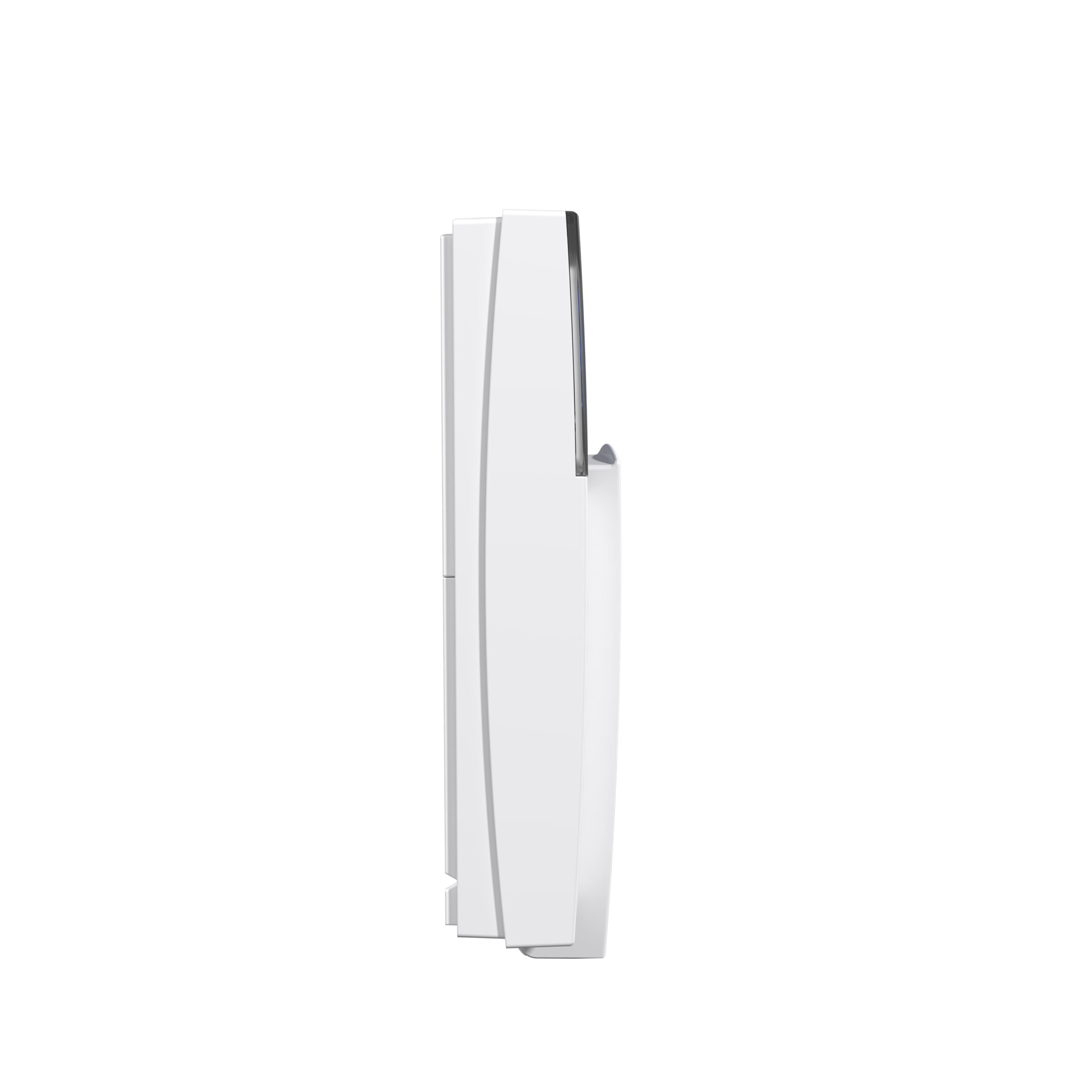

Thumb_650x650_K37_Side

K37 32-Zone Wireless Fixed LCD Keypad

Features

Powered by 2 “AA” batteries, with built-in backup battery (PA6 is optional)
A 6Vdc power adaptor (PA6 not included) is not required but can be used as an alternative power source
Provides real-time zone and system status, and can be used to program the panel using only battery power
Goes into sleep mode after 20 seconds to save battery life, but remains synchronized with the panel in order to automatically wake up upon an entry delay or an alarm to provide full functionality (system status, zone display and buzzer)
Fixed message display that guides you in the operation of the system
Displays the status of 32 zones in 2 partitions
Displays Arm, Sleep, Stay and Disarmed status for each partition
Displays StayD, troubles, bypassed zones and alarm memory
In-field firmware upgrade via 307USB
Adjustable backlight
Built-in transceiver (433MHz or 868MHz)
Wireless range in a typical residential environment: 40m (130ft)
8 one-touch action buttons
3 keypad-activated panic alarms
The 6Vdc power adaptor is not required but can be used as an alternative power source (PA6 not included)
Compatible with MG6250, MG5000 / MG5050 V3.22, MG5075, Spectra SP V3.22 (except SP4000) and RTX3 V1.42
